WSFM 1100-2000 Series Milk Box Co-extrusion Lamination Line

Application: Aseptic Packaging Line, for paper-aluminum composite multi-layer packaging material production,such as milk box, beverage box. Main features: 1.PLC man-machine interface centralized control, machine, electricity, gas integrated design.

Send Inquiry
Shared to

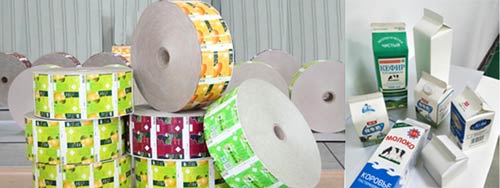

Application: Aseptic Packaging Line, for paper-aluminum composite multi-layer packaging material production,such as milk box, beverage box.



Main features:

1.PLC man-machine interface centralized control, machine, electricity, gas integrated design.

2.Swift exchange of filter screen.

3.High precision imported boundless head

4.Equipped with dry type composite system, with the function of dry type

5.High speed and high efficiency mixing screw (United States Technology)

6.And can be matched with a single extruder, Twin Extruder, extruder, multilayer coextrusion

7.New technology static mixing device (Italy Technology)



Main technical parameters:

machinery specification

1100/90mm、1300/100mm 、1500/105mm、 1800/110mm

speed of coating film

150m/min、180m/min、250m/min

suitable coating resin film

LDPE、PP EVA 、EAA

suitable base material

BOPP、BOPET、BOPA、CPP、CPE、PAPER、AL

width of coating film

1100mm、1300mm、1500mm、1800mm

thickness of coating film

0.012~0.1mm

inaccuracy thickness of coating film

Φ500mm、Φ600mm、Φ700mm

complex cooling roller

Φ500mm、Φ600mm、Φ700mm

screw specification

（L/D）Φ90：33、Φ100：33、Φ105:33；Φ110:33

main unwinding diameter

Φ800-1500mm

diameter of auxiliary unwinding

Φ600mm

diameter of rewinding

Φ800-1700mm
