Wenzhou Winrich Machinery Co.,ltd is located in Pingyang county,Wenzhou city of Zhejiang Province,China, established in 1996. It covers land area of 15,800sqm.standardized workshop of 11,000 sqm,and holds 50-100 sets machines production every month,which is the largest in Wenzhou.
Company's main products are:extrusion coating and lamination machines, slitter and rewinder, paper cutter and sheeter, which are widely used in paper, cloth, metal foil, plastic bags, non woven fabric and other materials. Machines are pretty popular in Southeast Asia, Middle East, Eastern Europe, South America, Africa and other countries, it also has occupied 80% of Chinese market. Strong technical team, sophisticated production process, perfect testing means, excellent management level, timely after-service, makes it a professional and brand manufacturer of printing and packaging equipment in China.
product description

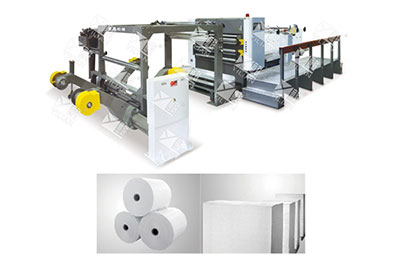

GDJA-1400/1700 hob type double station servo-driven computer paper cutter
Main features:
GDJA type drum tangent machine adopts the advanced technique of Taiwan and the United Kingdom, AC servo motor drive, stable cutting speed; import bearings, precision and cutting knife, cut off the high accuracy; green touch computer interface control, simple operation, simple structure of the anti curved frame, ensure that the paper flat is currently to make paper and printing industry in general the paper products processing machinery
The main technical parameters:
| model | GDJA-1400/1700 |
| model of cutting paper | The up knife cut reciprocally and the down knife is fixed |
| reference weight of cutting paper | 50-500g |
| cutting accuracy | The cutting length is below 1300mm±0.5mm |
| cutting speed | 300cuts/min |
| gross weight | 13000kgs/15000kgs |
| power consumption | AC380V/220V×50Hz |
| cutting meter speed | 300m/min |
| cutting lenght range | 450-1450mm |
| paper-piling height | 1300mm |
| scroll diameter | 1800mm(71＂)Max |
| paper-cutting width | 1400/1700mm |
| the format of slitting | 2sheet |
| the request for air compressor | Max.5.5kg/cm2×5m3/min |
| Suitable Stick size | Length:80mm,100mm,120mm |
| diameter：2.3—2.5mm | |
| weight:1.6—2.5g | |
| Shape of cotton buds | Single head, Double head |
| Suitable stick | Bamboo stick,paper stick,wooden stick |
| manner of packing | Film bag |
| Machine Size(L*W*H) | 9.6*1*1.6 m |
| Machine Weight | 1890kg |

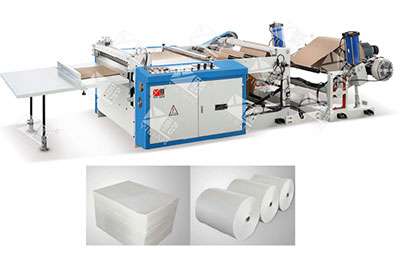

DFJ 800-1700 high precision computer auto transverse cutting machine
Main features:
This paper cutting machine is suitable for paper, trademark, Yanbiao, calendars, wine boxes, cards, paper plastic composite coil materials such as longitudinal and transverse shear. Function: flat cutting, automatic feeding, photoelectric tracking, with power control, variable frequency speed regulation, plant, automatic counting, voice alarm function
Use:
This machine is suitable for various kinds of paper, paper plastic composite, color composite such as large reel packaging materials cut. Widely used in paper products processing industry, printing and packaging industry, etc.
Main technical parameters:
| Transverse Cutting Speed | 80-100m/min |
| Width of Transverse Cutting | 200mm |
| Length of Transverse Cutting | 20-1500mm |
| Fixing Precision | ±0.3mm/pcs |
| Capacity time | 20-100times/min |
| Main power | 7.5kw（Transverse cutting machine） |
